H系列超聲波環保污水處理機產品是集機電、微孔處理板、自動化控制、超聲波清洗等高技術于一體的新產品，設計新穎，結構緊湊，性能穩定，節能環保的優勢，經濟、社會效益顯著，可廣泛應用于有色、黑色金屬、非金屬選礦及石材加工、化工、煤炭、冶金、發電、污水處理等行業的固體分離設備。

H系列超聲波環保污水處理機

H Series Ultrasonic Environmental Protection Sewage Processor

專業的石材污水處理系統

Professional System For Stone WasteWater Processing

一體化污水處理[Integration for Sewage Processor]

先鋒H系列超聲波環保污水處理機采用集機電分離、微孔處理板、自動化控制、超聲波清洗等高精尖技術于一體，利用毛細作用原理最終達到國液分離的目的，污水處理更全 面。

Collect wih motor， micro-porous plate， automatic control&ultrasonic clear.

節約用水再循環[Save Water and Recycle Use]

安裝先鋒H系列超聲波環保處理設備將污水處理后，變成可再循環使用的清水，降低企業成本。

Save the factory manufactured cost.

礦石粉塵再利用[Reuse of Stone Dust]

處理出的礦石粉塵可再次加工成筑板材、工業板材等為企業變廢為寶創造價值，

Those stone dust can be processed to construction or industry slabs，

主要特點[Main Feature]

1節就高效：處理力大， 節電效采明同。處理能力≥1100kg/m2h， 用電<0.5kwhth， 與傳統圓盤、外過機相比較， 節約耗80%以上，

2全自動控制：離性能系列機型采用程序自動控制、自動進料、自動洗，降低了操作人風勞動強度，可城少操作人員數量。

3自動保護系統：具有故障自動報警系統、故障屏幕顯示功能、高低液位顯示，井自動排除或關機等人工處理。

經久耐用：本機聚用微機優化設計，結構合理，工作可靠，主要傳動部件采用兔維護設計，憶故圓停機率，情體內攪拌系統采用專業防腐材料，保證共使用壽命可達10年以上，

5高產品質量：由于過濾處理后的精礦水份低，可大大操高產品的市場爭力，井降低運輸過程中的運輸成本及損桶，環保效果明量：由于液清澈，可反復利用，減少排放，符合當前騰清生產的環保大趨勢。

①Energy-savingandhigh-efficiency：largeprocessingcapacityandobviouspower-savingeffect.Comparedwithtraditonaldiscsand  external il ers， I he processing capacilyismorethon1100kg/m2h and the electricity consump lion is less than 0.5kwh/th， which can save

more than 80%of energy consumption.2 Fully automatic control：The high-por formance serios models use automatic program control， automatic foe ding.and automatic cleaning，

3.Automatia protection system：It has automati of ault alam system， fault screen displayfunction， high and low level display， and manual

processing such as automatic elimination or shul down.

4.Durable：This machine adopts microcomputer optimized design， reasonable structure and reliable work.The main transmission parts

adopt maintenance-free design， which ro duces the downtime rate， The mixing sys to min the tank uses prof os sional anti corrosive materials

to ensure ils service life can reach more than 10 years.

5.Improve product quality：Because the moisture content of the concentrate after filtering is very low， it can greatly improve the market com-

pei ive ness of the product， and reduce the transportation cost and loss during transportation，

6.Obvious environmental protection effect：As the fit rate is clear， it can be reused and reduced emissions， which is inline with the current

environmental protection trond of cleaner production.which reduces the labor intensity of the operator and reduces the number of operators.

應用原理

Applied Principle

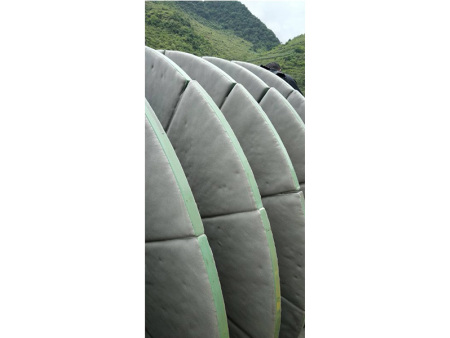

H系列超聲波環保污水處理機工作開始時，礦石粉塵與水的混合物抽到料漿槽上，在處理板真空作用下，形成一層較厚的顆粒堆積層，濾液通過處理板過濾至分配閥到達真空桶。轉子載著濾餅通過吸漿區到干燥區，濾餅在真空作用下繼續脫水干燥。轉子通過主軸轉動將干燥后的濾餅帶到卸料區，在刮刀裝置的作用下進行卸料，直接滯留至精砂池或通過皮帶輸送運至所需的地方。卸料后的處理板進入反沖洗區，此時利用超聲波環保污水處理機本身的過濾或外接自來水，經過反沖洗管道通過壓力調整由分配閥進入處理板內腔，由內而外清洗處理板的微孔，同時將殘留在處理板表面的殘余礦物沖洗下來。

H Series Ultrasonic Environmental Protection Sewage Processor， the mixture of ore dust and water is pumped to the slurry tank.Under the action

of the vacuum of the treatment plate， a thick layer of particle accumulation is formed.Vacuum bucket.The rotor carries the filter cake through the suction area to the drying area， and the fit er cake continues to be dehydrated and dried under the action of vacuum.The rotor takes the dried cake to the unloading area through the rotation of the main shaft.The unloading is carried out under the action of the scraper device， and it is directly retained in the fines and pool or transported to the required place through a belt conveyor.The unloaded processing board enters the

backwashing zone.At this time， the filtering or external tap water of the ultrasonic environmental protection sewage treatment machine is used

to enter the innerspace of the processing board through the backwash pipe through the pressure adjustment through the distribution valve， and the processing board is cleaned from the inside to the outside.Micropores， while washing away the residual minerals left on the surface of thetreatment plate.
